Smart Glass

What is Smart Glass?

Smart glass or switchable glass (also smart windows or switchable windows in those applications) is a glass or glazing whose light transmission properties are altered when voltage, light or heat is applied. Generally, the glass changes from translucent to transparent, changing from blocking some (or all) wavelengths of light to letting light pass through.

Critical aspects of smart glass include material costs, installation costs, electricity costs and durability, as well as functional features such as the speed of control, possibilities for dimming, and the degree of transparency.


651441

Intelligent glass atomization state

Smart glass is composed of two transparent conductive films with a plastic-liquid crystal core layer between them. The refractive index of the unusual light and the ordinary light of the liquid crystal are not ne and no, respectively. When the vertical incident visible light passes through the glass and the transparent conductive film and incident into the liquid crystal sphere and the polymer interface, because ne is not equal to nP, it scatters. The smart glass is atomized.
6514412

Transparent state of smart glass

When the electric field is applied, the electric field is formed between the two transparent conductive films, and the liquid crystal molecules are arranged along the electric field direction. When the vertical incident visible light passes through the glass and the transparent conductive film and is incident to the liquid crystal sphere and the polymer interface, the no direction is perpendicular to the light propagation direction, and the no equals nP, so it transmits. Smart glass is transparent.

Applied range

yushibutoumingyushitouming

Hotel bathroom

According to the needs of users, changing its transparency can not only ensure privacy, but also add more interest in life, improve the hotel grade.

Office Partition

New neighborhoods that lead to the secrecy of modern office environments present radically different office spaces, bringing extraordinary experiences in function, design or vision.

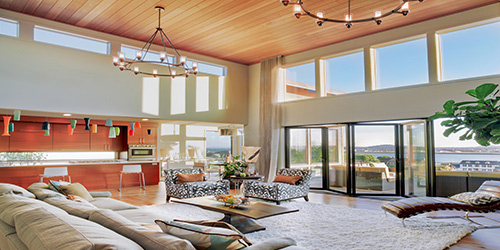

Villa

The concept of architectural design is constantly upgraded to create an open and hidden dual function of space.

Business place

Flexible and practical! Can improve the office, reception and leisure a mysterious color, but also for the lobby, club environment to add a lot of new ideas.

Bank counters, jewelry windows

The compatibility of openness and secrecy can provide a more comfortable and comfortable working environment for banking and jewelry industry. In case of robbery or stop work, the glass can be changed into opaque instantly by remote control.

medical institution

It can be used to require aseptic operation of intensive care unit, operating room inspection window, can avoid the use of curtains caused by bacterial contamination and can avoid the inconvenience of washing.

Characteristics of smart glass

Transmittance of 80%+

Shielding 98% UV

Shielding noise reaches 38 dB.

Instant response, within 1/10 seconds.

Smart Glass QC Testing
